P1000 – iQpump

* 0.75HP-800HP
* iQpumpes Brand for Pumping Applications:  systems of
   constant pressure, Water and Irrigation Treatment.
* Products: Systems of constant pressure, Variable Speed
   Drive P1000 iQpump, soft starters, motors and gear motors    for pumps.
* Pressure Systems for: 1,2, 3 & 4 Pumps with different    configurations.
* Standard Power in Commercial Buildings: 3 HP-30 HP
* Water and Irrigation Treatment: 50 HP-800 HP.

L1000 - iQrise

* 5HP-150HP
* iQrise brand for application elevation:
   Elevators, freight elevators and Stairs.
* Products: Variable Speed Drives L1000, Traction Machines    Gearless PM, dynamic braking systems, regenerative units,    Matrix Shifter, integrated systems for elevators and stairs.
* Standad Power: 5HP-30HP a220V / 440V.

Z1000 - iQflow

* 5HP-500HP
* iQflow Brand for application of ventilation, cooling towers y    refrigeration pumps.
* Products: Variable Speed Drives Z1000, systems Z1000    integrated with By-pass.

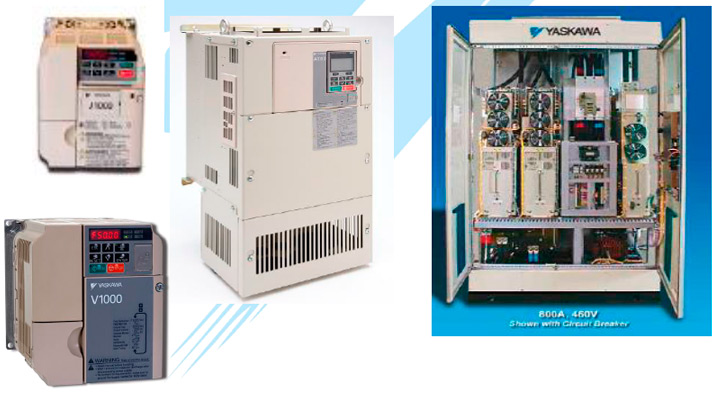

J1000

The J1000 is a last generation frequency compact drive that combines functionality, low price, and recognized quality of Yaskawa. Ideal for low power application that required Variable Speed Drives.

* Control Mode: V/f Open Link
* Power Rank: 1/8 – 7,5HP (220/440 VAC)
* Digital I/O – 5 Entrances, 1 Output
* Analogous Entrance (0-10 VDC, 4-20mA)
* Programmable analogous output (0-10 VDC)
* Digital Operator with display of 5 digits.

V1000

V1000 is the world compact vector frequency shifter, with a great deal of functionalities that made it very flexible. Ideal for medium power applications and those that required vector control.

* Control Mode: V/f, Open Vector Link
* Power Rank: 1/8 – 25HP (220/440 VAC)
* Digital I/O – 7 Entrances, 3 Outputs
* Two (2) analogous entrances (0-10 VDC, 4-20mA)
* Programmable analogous output (0-10 VDC)
* Digital Operator with display of 5 digits.
* PC Connection with DriveWizard+™
* Communication RS-422/485 MODBUS 115kbps
* MTBF – 28 years old.

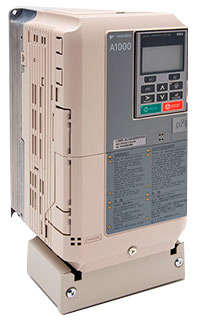

A1000

Common Functions

* High/Low Pressure Level Detection
* Low Speed Fault Detection
* Custom Run Sequence
* Home Display Screen
* Custom and Scalable Monitors
* Custom Automatic Restart
* OL4 Auto Restart Capability

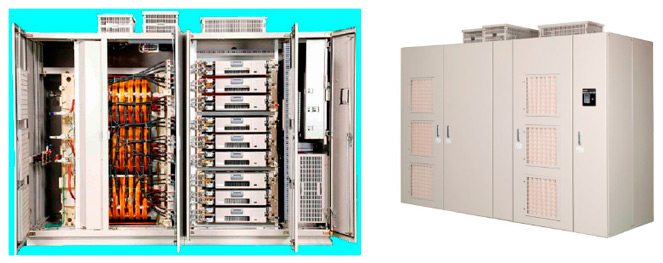

MV1000

The latest technology drive that combines reliability, high performance and easy operation. With an advanced control PWM multi-nivel that helps to protect the energy quality and the Industrial equipment.

This drive allows the most efficient used of energy with efficiency until 98% and a power factor of 0.95 or higher, independent of the shifters in motor speed and load.

* Energy Saving.
* Maintenance Self-diagnostic.
* Modular in low tension cells.
*Low harmonic distortion.
* High control level.
* Harmonic Smart Technology Yaskawa.
* Applicable to motors and existing onslaught.
* Voltages: 2.4 and 4.16.
* Rated Currents from 39 to 625 Amps.
* Powers from 200 to 5000HP.

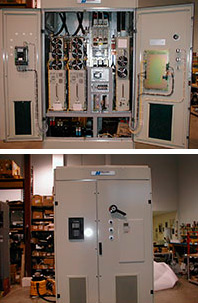

HHPA1000

High Power Modular Variable Speed Drive in low tension (until 600V), high performance and easy operation. Based in the same programming and operation philosophy of the serial equipments A1000.

This drive allows the most efficient energy used until 98% in case of regenerative or mitigation harmonic applications that required additional peripherals devices.

* Energy Saving and Low harmonic distortion.
* Applicable to motors and existing link-ups.
* Voltages: 460 VAC and 690 VAC
* Powers from 300 until 2000HP
